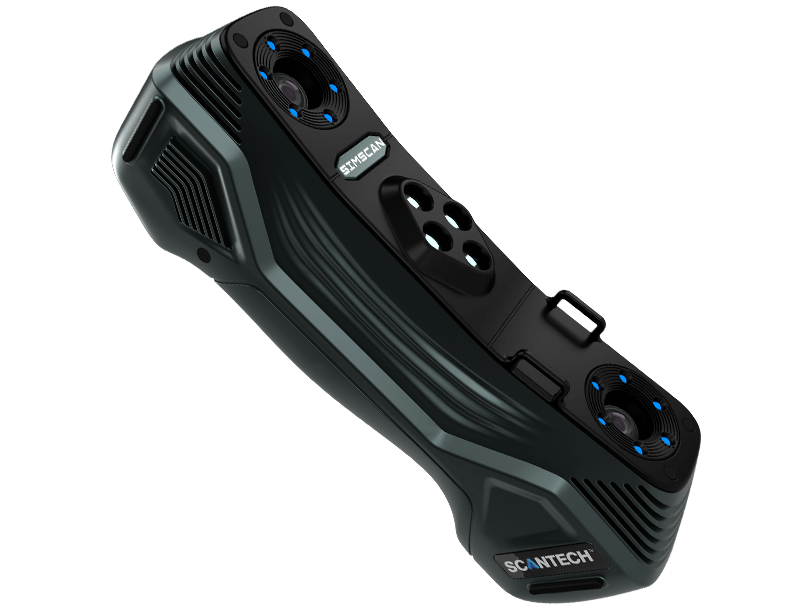

SIMSCAN, the only hand-sized 3D scanner in the market so far, is a disruptive innovation of the traditional 3D scanners’ structure and a revolutionary product in 3D optical metrology industry. No matter in narrow spaces, or under huge objects, SIMSCAN performs high-quality 3D scanning without any restriction of working environment. Metrology-grade measurement system helps capture every detail
| Specifications | SIMSCAN30 | |
|---|---|---|
| Ultra-fast scanning Mode | 11 blue laser crosses | |
| Hyperfine scanning Mode | 7 blue parallel laser lines | |
| Deep hole scanning | 1 extra blue laser line | |
| Laser lines in total | 30 | |
| Accuracy | 0.020 mm | |
| Scanning rate | Up to2,020,000 measurements/s | |
| Scanning area | Up to 410 mm × 400 mm | |
| Laser class | Class?(eye-safe) | |
| Resolution | 0.025 mm | |
| Volumetric accuracy (with MSCAN-L15) | 0.020 mm + 0.015 mm/m | |
| Stand-off distance | 300 mm | |
| Depth of field | 250 mm | |
| Output formats | pj3,asc,igs,txt,mk2,umk,stl,ply,obj | |
| Open foramts | pj3,pjs,asc,igs,txt,mk2,umk,refxml,stl,ply,step | |
| Operating temperature range | -10 ~ 40? | |
| Interface mode | USB 3.0 | |
| Dimensions | 203 mm × 80 mm × 44 mm | |
| Weight | 570 g |
